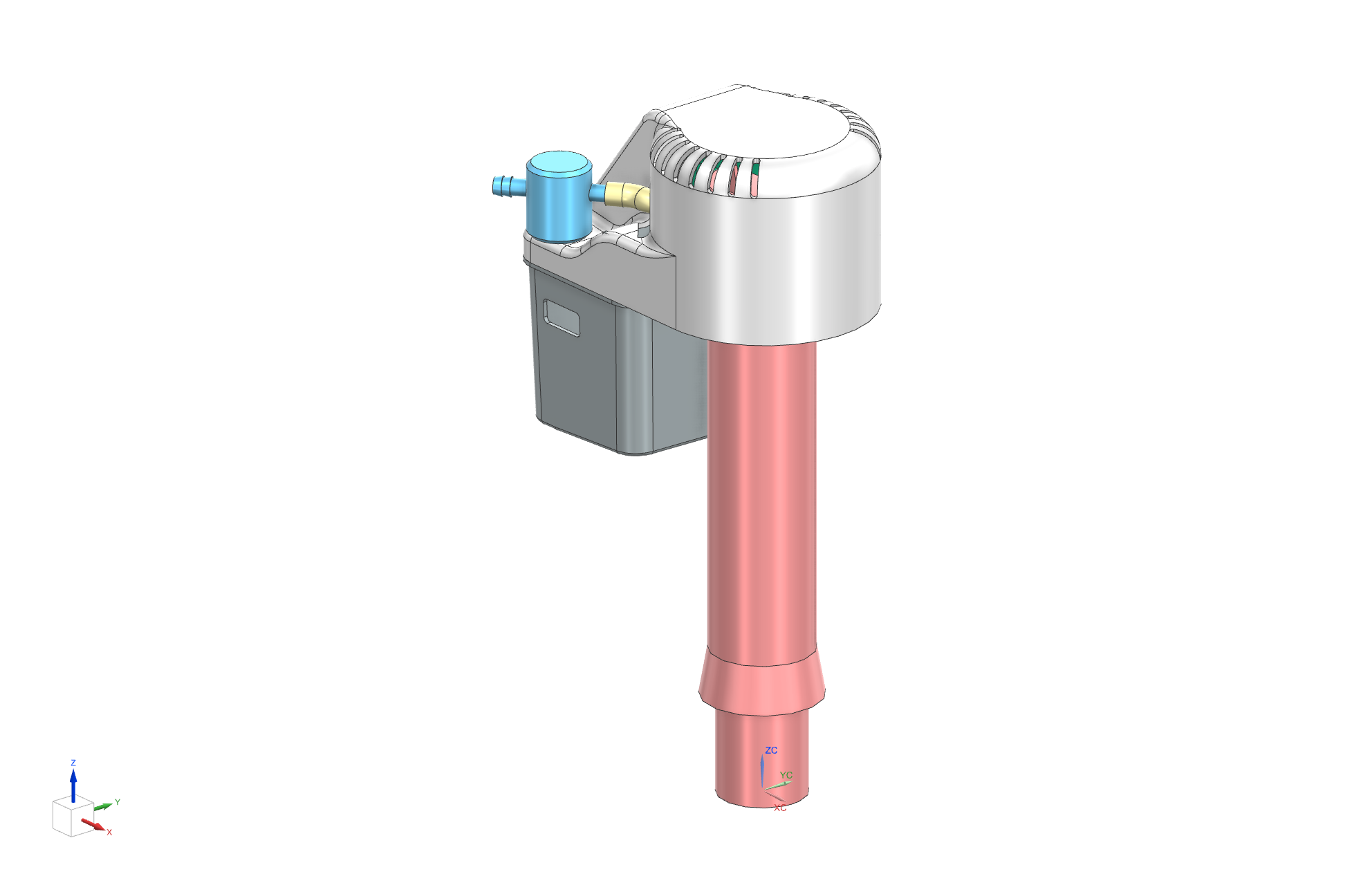

CAD Final: Silent Float Assembly

• Title: Introduction to Engineering Graphics and CAD Final Project

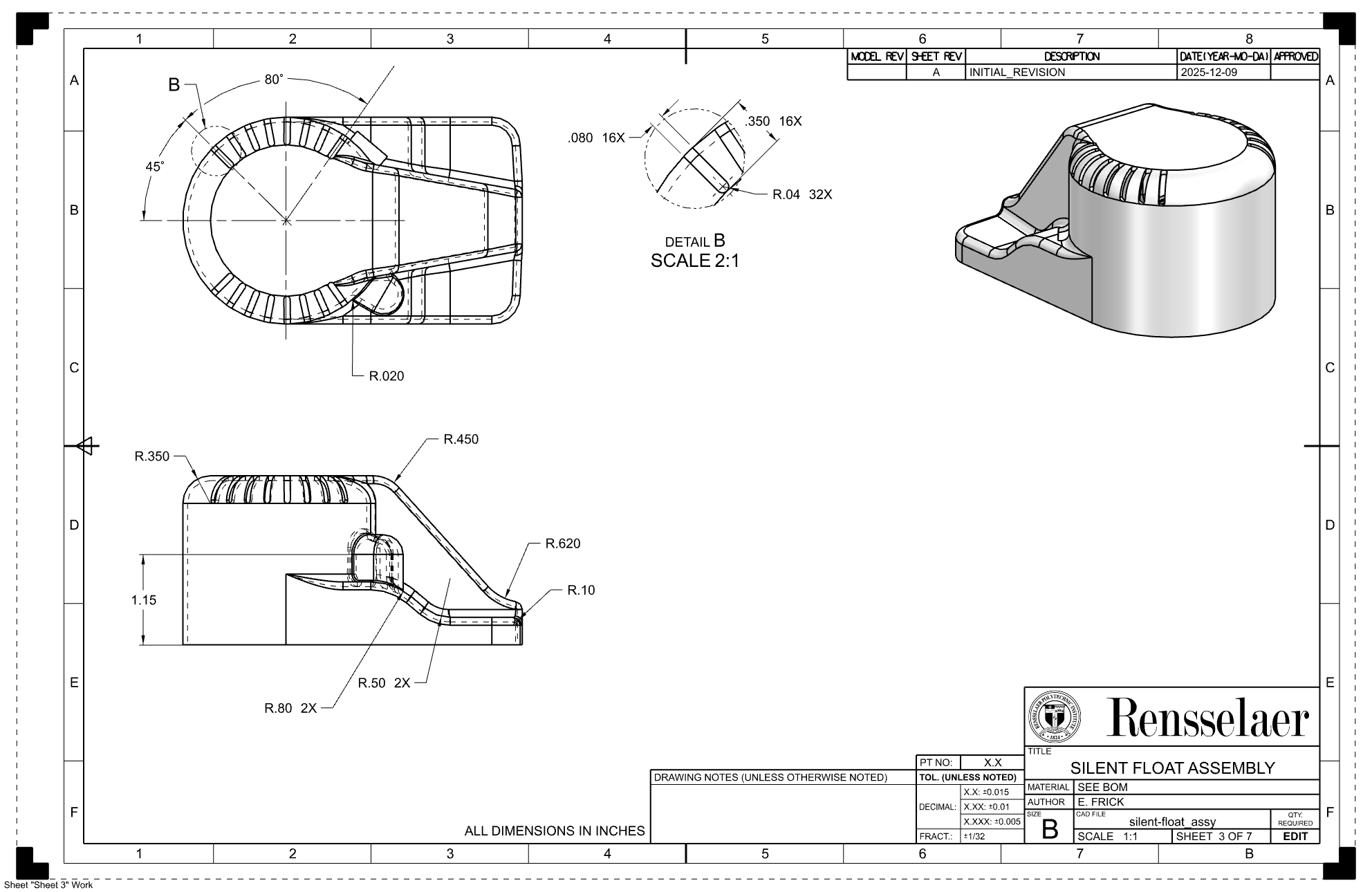

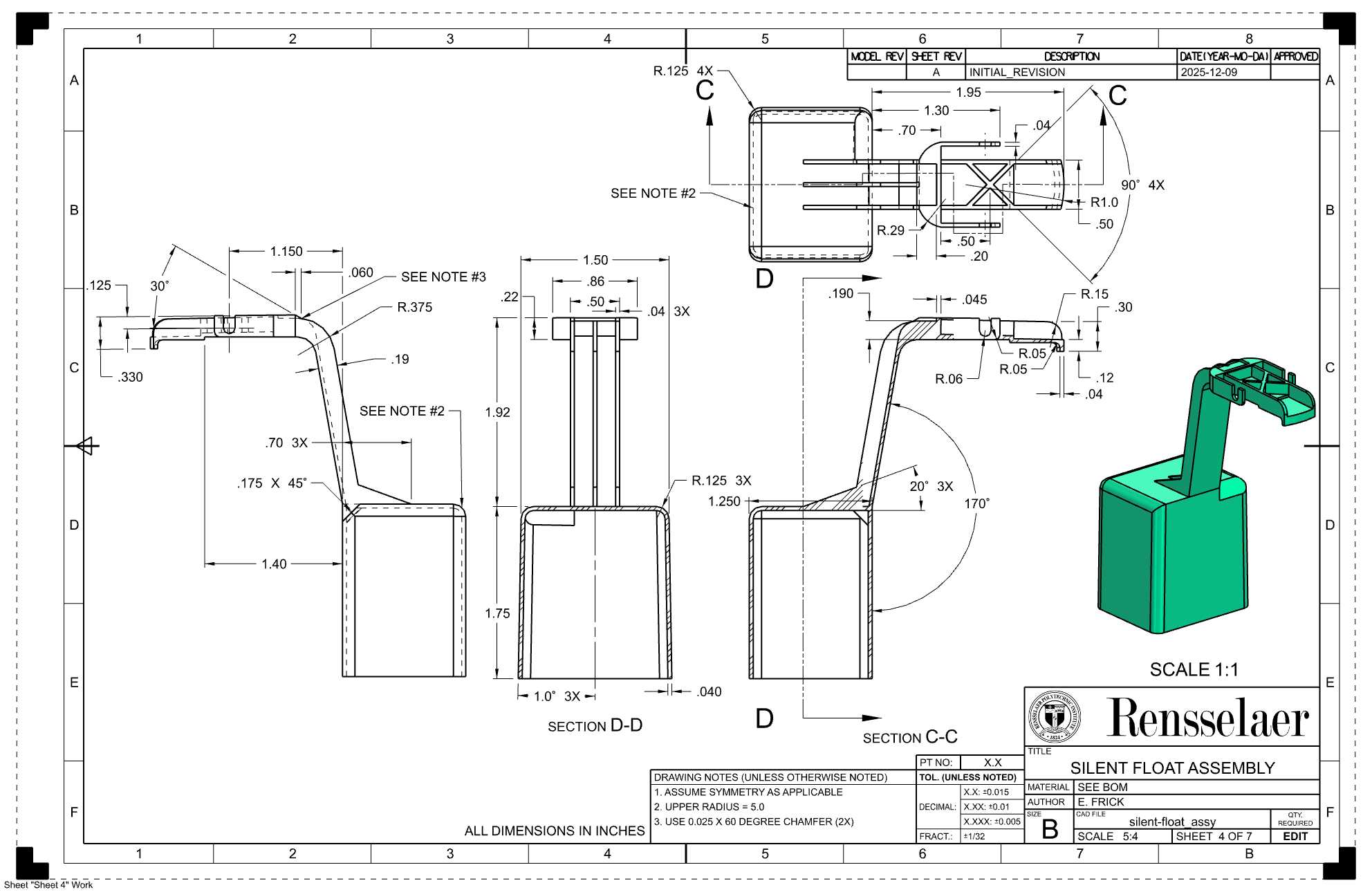

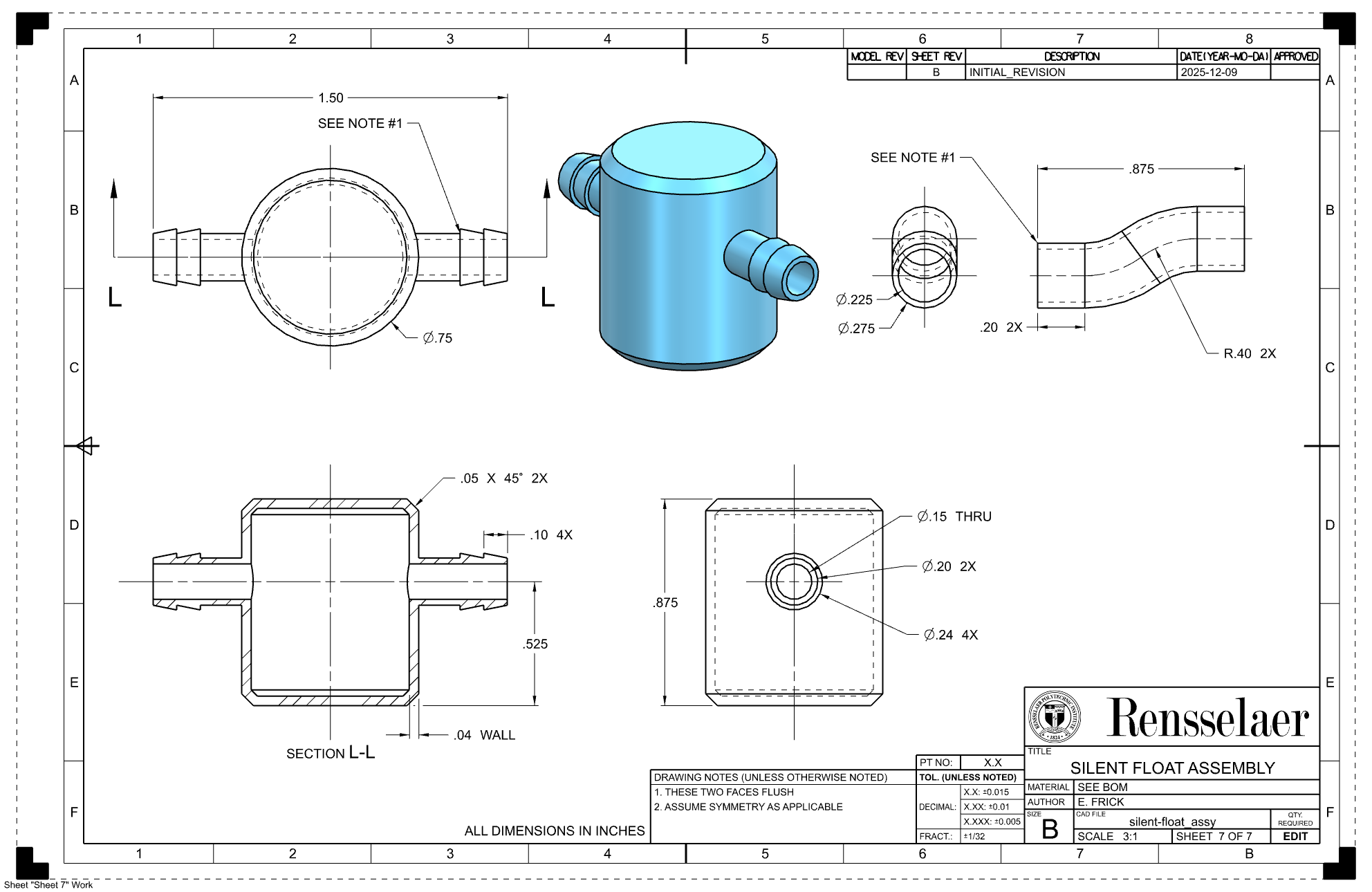

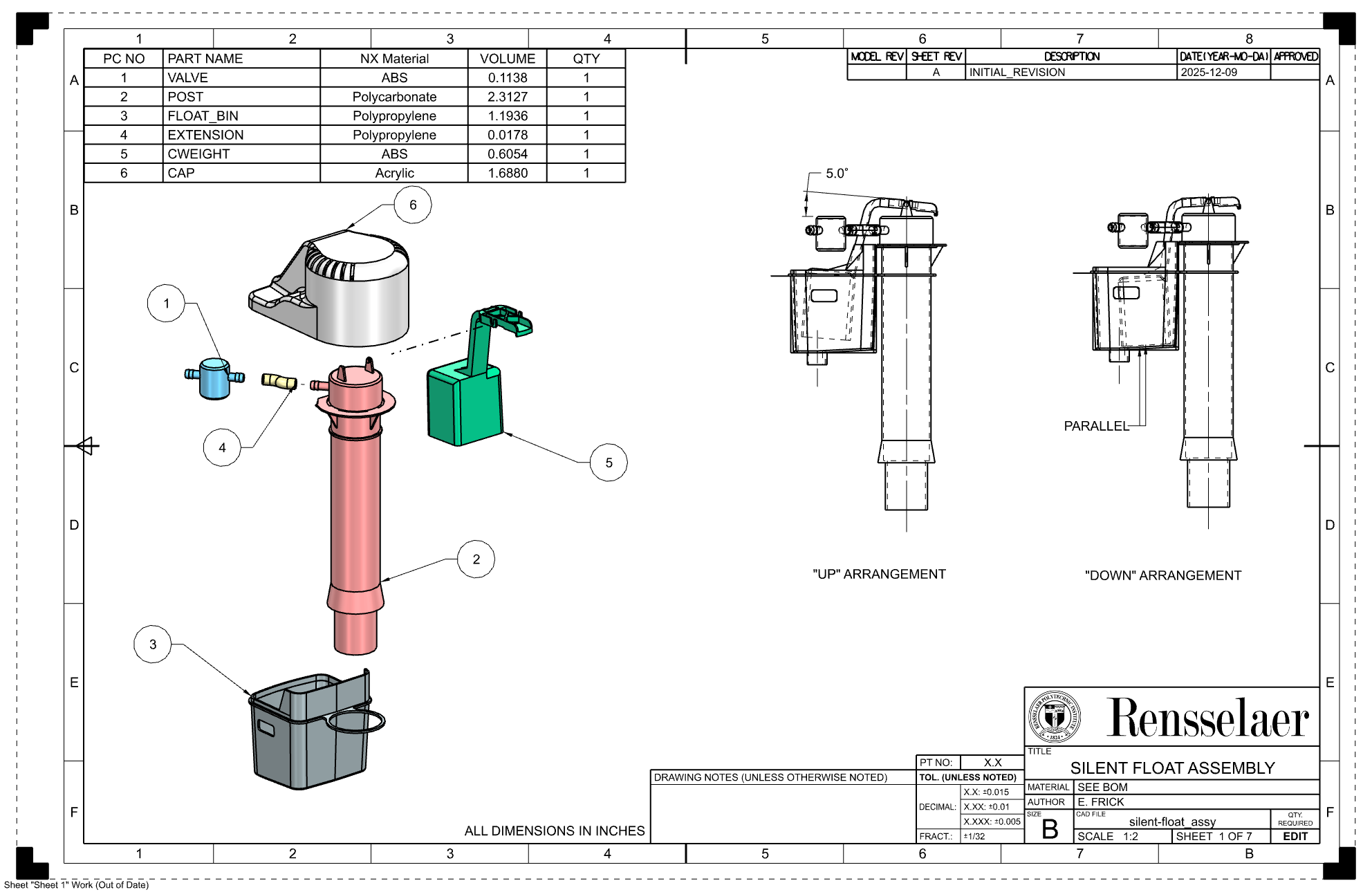

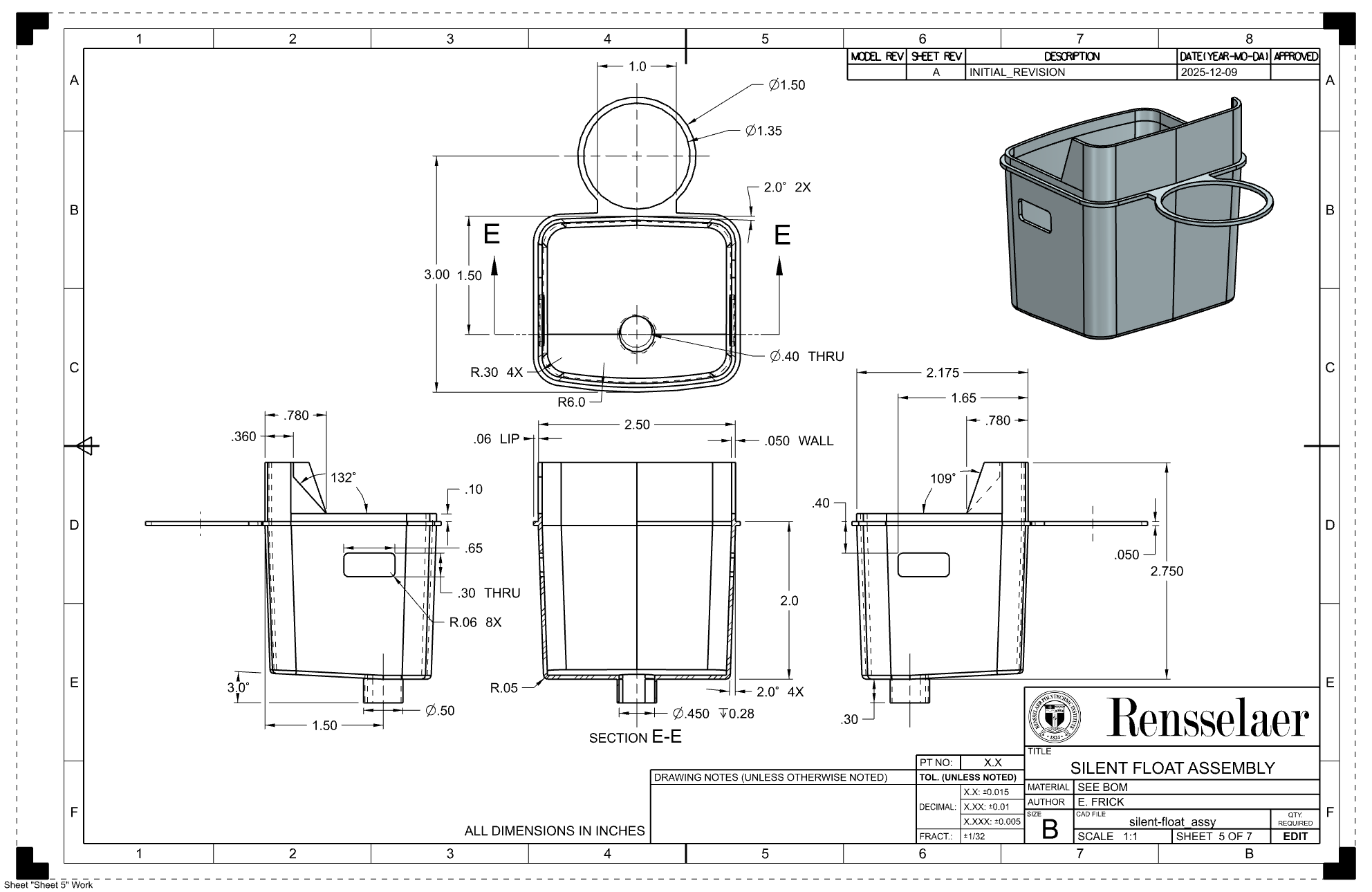

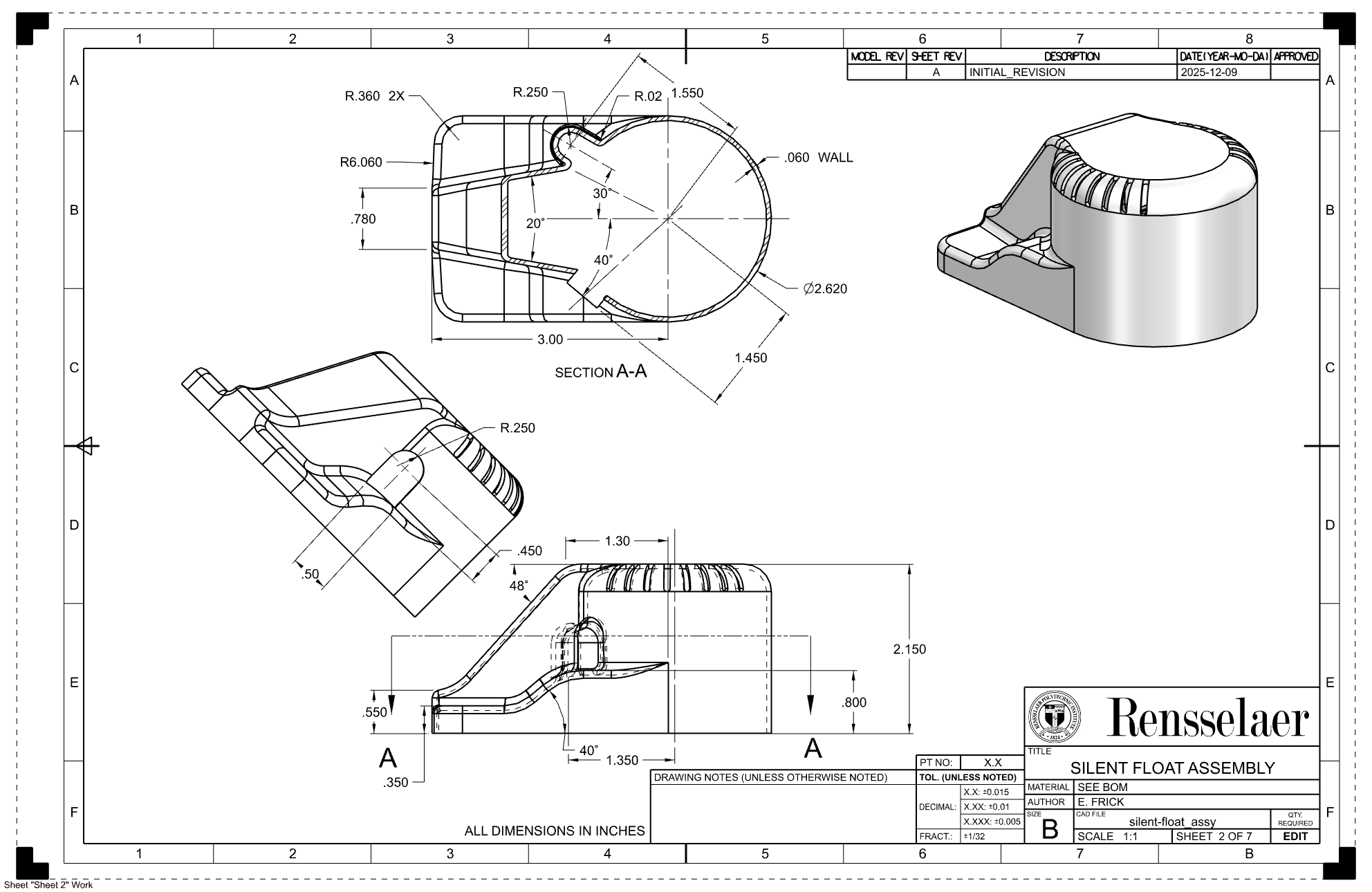

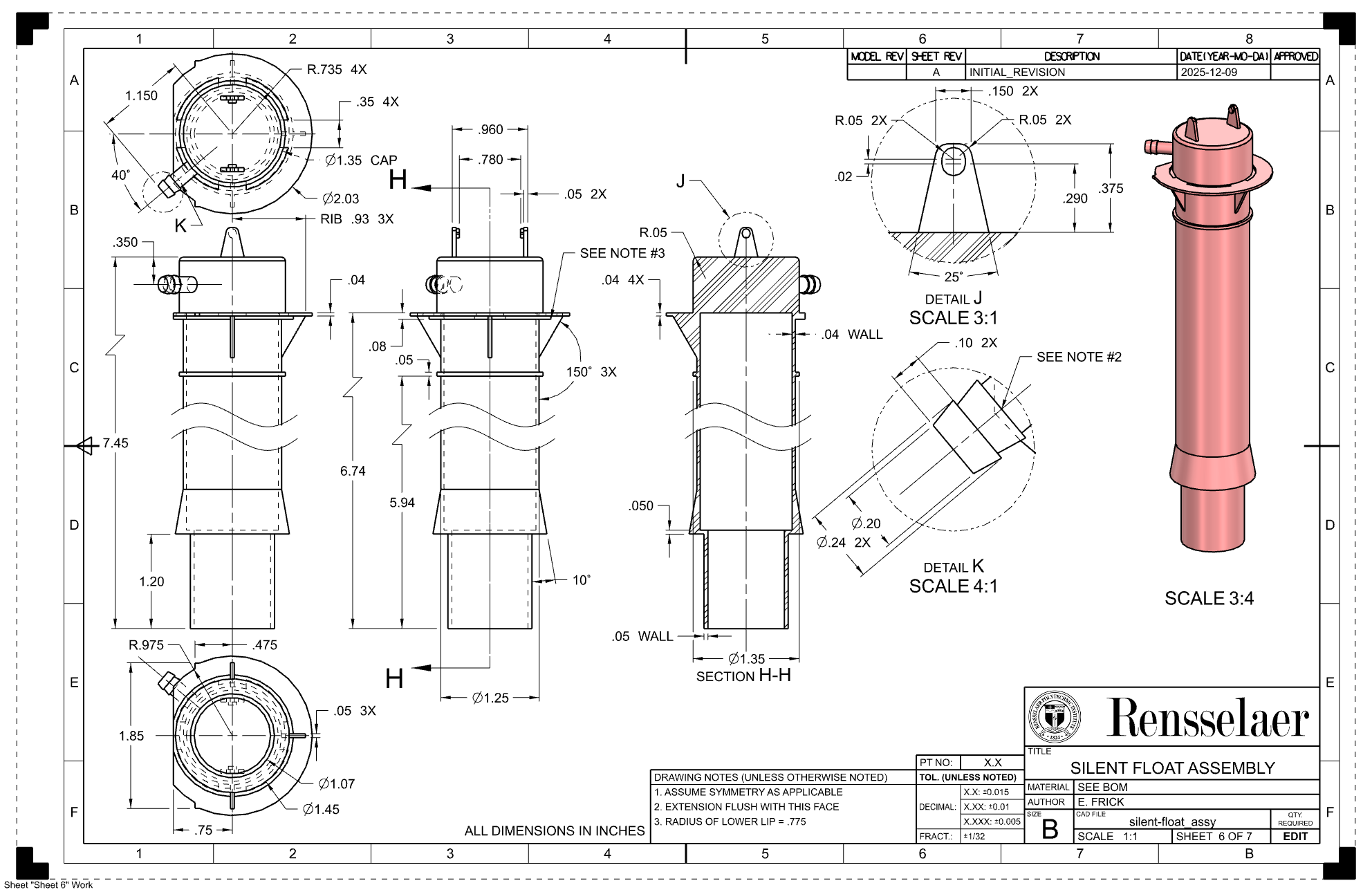

• Description: The goal of this assignment was to demonstrate CAD processes via the replication of drawing pages given to us by our instructor. We were tasked with modeling the individual parts, assembling the parts, and creating drawing sheets for each of the parts and for the assembly. This was done via the usage of Siemens NX.
• Skills: This project demonstrates my abilities in CAD along with time management abilities due to the great amount of time required to complete this project.
